Specifications

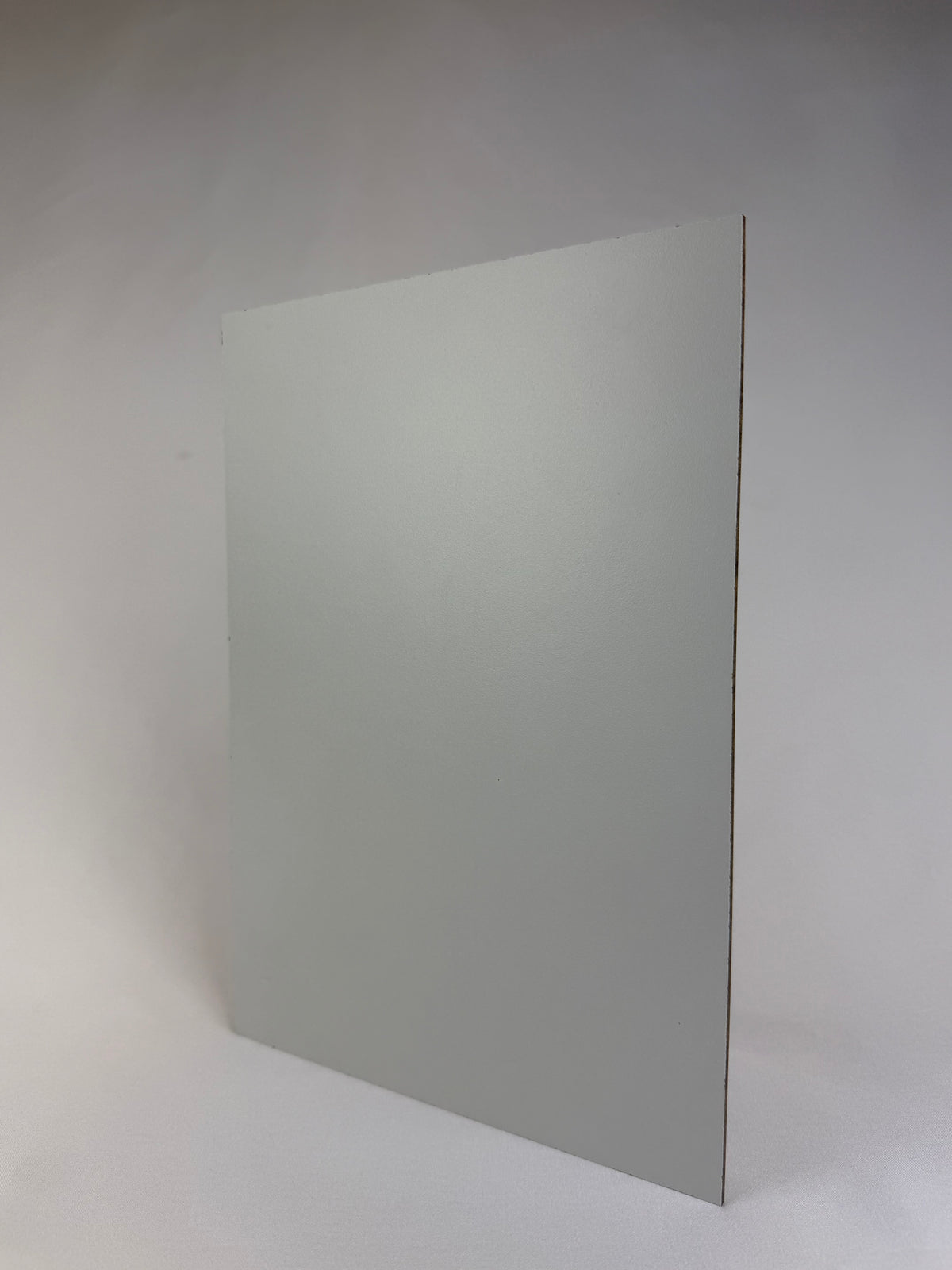

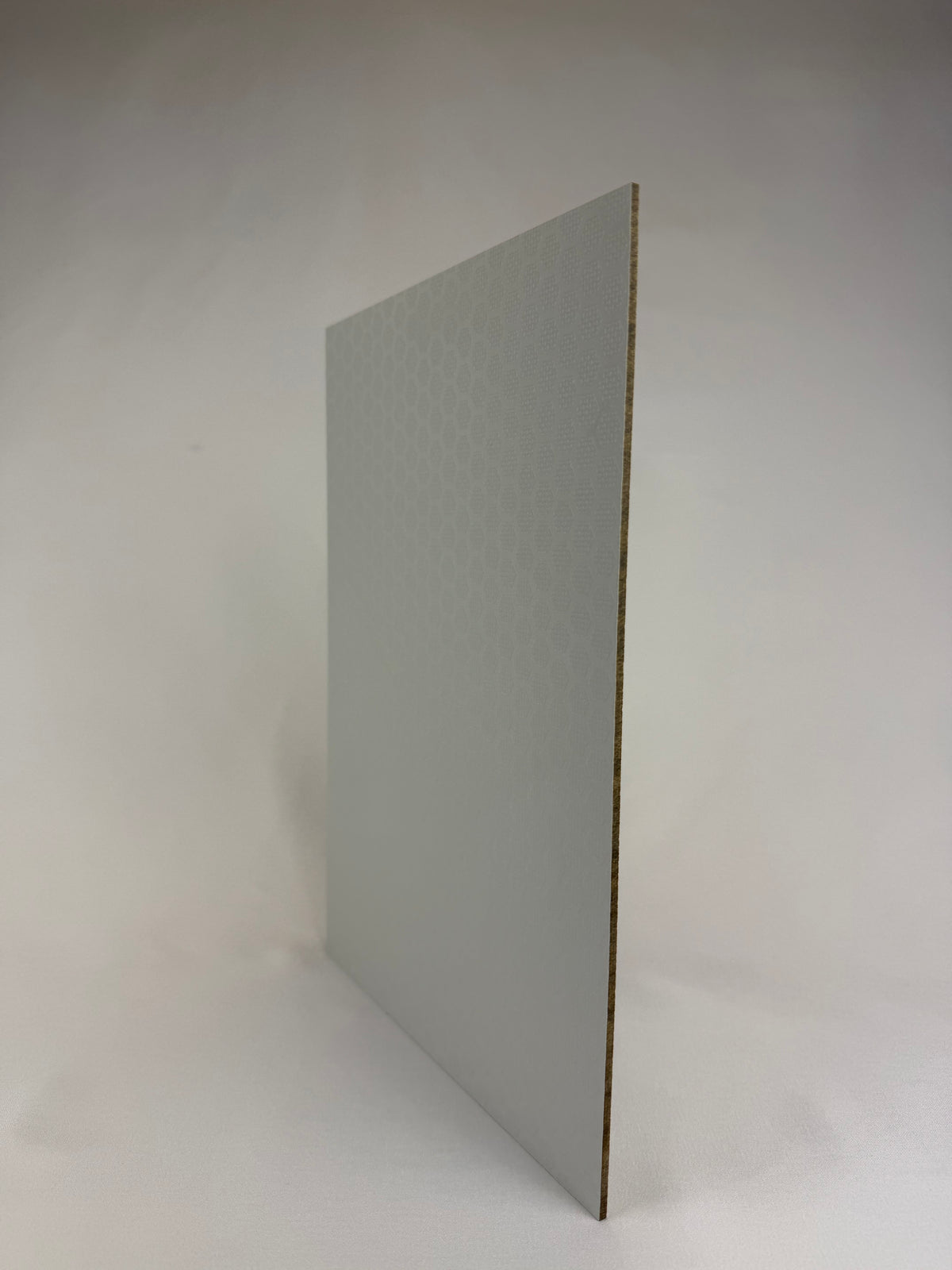

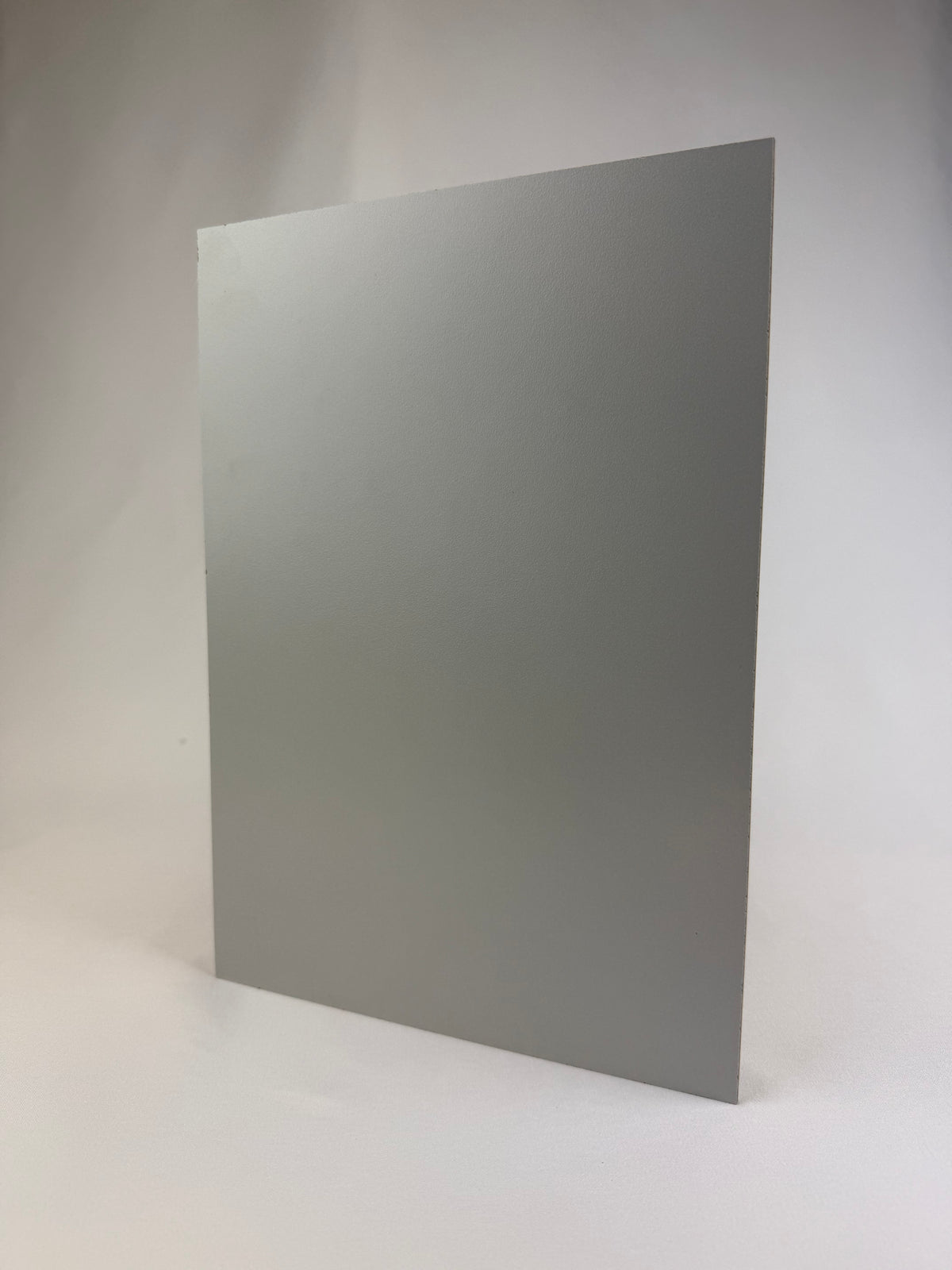

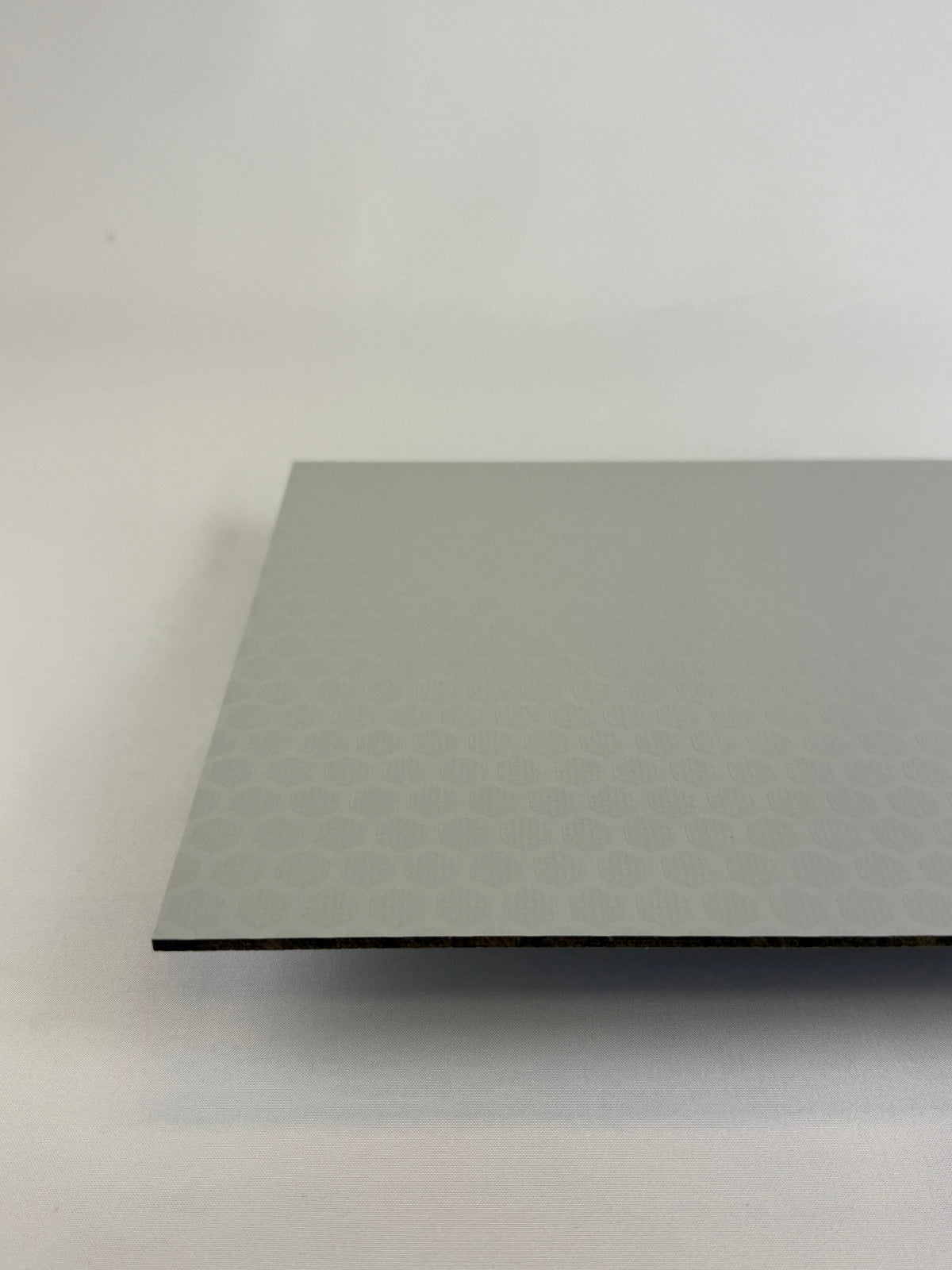

Water and heat resistant, making it a good choice for kitchen and bathroom splashbacks. Laminate splashback panel: kraft paper core impregnated with thermosetting resins, faced with a decorative paper layer impregnated with aminoplastic resins, bonded under high pressure (≥7 MPa) and high temperature (≥130°C), per EN 438-3.
| Sheet size | 2440 × 1220mm |
| Thickness | 3mm |
| Sold as | Per sheet |
| Composition | Kraft paper core + decorative aminoplastic surface layer, high-pressure/high-temperature bonded (EN 438-3) |
| Surface wear resistance | IP > 150 revolutions (EN 438-2.10) |
| Resistance to boiling water | Rating ≥ 4 (gloss finish > 3) (EN 438-2.12) |
| Resistance to dry heat (160°C) | Rating > 4 (gloss finish > 3) (EN 438-2.16) |
| Resistance to wet heat (100°C) | Rating > 4 (gloss finish > 3) (EN 438-2.18) |
| Dimensional stability at elevated temp. | ≤ 0.55% longitudinal / ≤ 1.05% transverse (EN 438-2.17) |
| Impact resistance (small ball) | Spring force > 20N (EN 438-2.20) |
| Resistance to cracking | Rating ≥ 4 (EN 438-2.23) |
| Resistance to scratching | Smooth finishes ≥ 2 / textured finishes ≥ 3 (EN 438-2.25) |
| Resistance to staining | Groups 1&2 rating 5 / group 3 > 4 (EN 438-2.26) |
| Lightfastness | Grey scale rating > 4 (EN 438-2.27) |
| Resistance to water vapour | Rating > 4 (gloss finish > 3) (EN 438-2.14) |
| Electrical resistance | 10⁹–10¹¹ Ω (EN 61340-4-1) |
| Density | > 1.35 g/cm³ (ISO 1183) |
| Water / heat resistance | Water resistant and heat resistant. Tested to EN 438: boiling water, 100°C wet heat and 160°C dry heat |
| Internal / external use | Internal use |
| Suggested applications | Kitchen, bathroom and laundry splashbacks, wet-area wall cladding |
Values from Filippi's HPL technical data sheet (EN 438 series). For 3mm CPL panels this is the closest matching data source — the sheet's own tables run up to 2.0mm, so treat load/mechanical figures as indicative rather than exact. Values describe the laminate material itself, not a fabricated composite panel.
